Mechanized Loop Molding Line

Quantity:
Inquire Add to Basket

  • 02

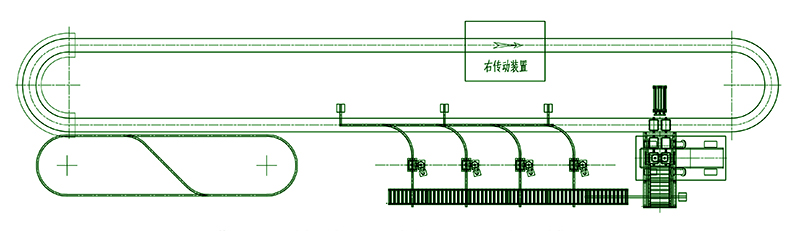

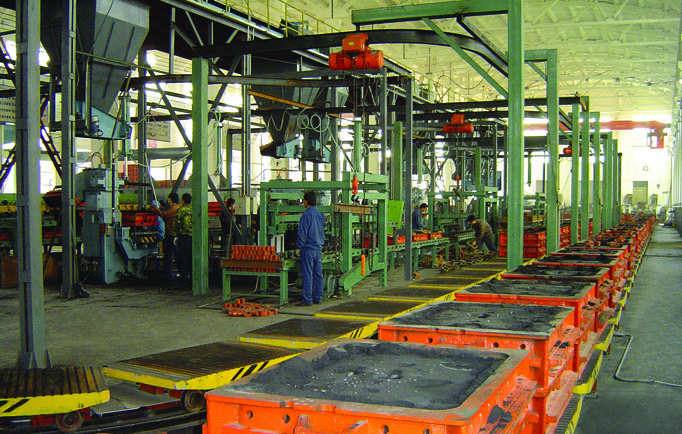

This moulding line is along with loop system and transfers sand casting through Y21 series of mold conveyer. It is the ideal equipment to realize the moulding mechanization and automation. Generally, it is continuously moving but can be beam walking style as the requirement. The whole length and layout depend on the workshop situation, production program, and production process. Conveyor model and table size depend on the size of flask box.

1
20170328113351866

Model
Y2108
Y2108A
Y2110
Y2110A
Y2112
Y2114
Y2116
Size of Pallet Car
800×500
1000×650
1280×680
1400×900
1600×1000
Pitch of Pallet Car
1000
1334
1480
1668
2000
Height of Pallet Car
500
500
500
600
600
Radius of turn(min)
1500
2000
2500
2500
Number of Rollers
2
4
2
4
4
4
Motion Speed
1.7-5.8m/min
