Mechanized Molding Line

Quantity:
Inquire Add to Basket

  • 02

This type green sand molding line with open layout and mold conveyor has rational structure, compact arrangement and footprint. This molding line adopts the jolt-squeeze molding machine, multi-piston molding machine, mold conveyer to pouring and cooling. Using the PLC control to operate, it transfers the sand mould between molding machine and cooling section through transition trolley and makes moulding, core setting, flask closure, pouring in a main line but cooling in other lines.

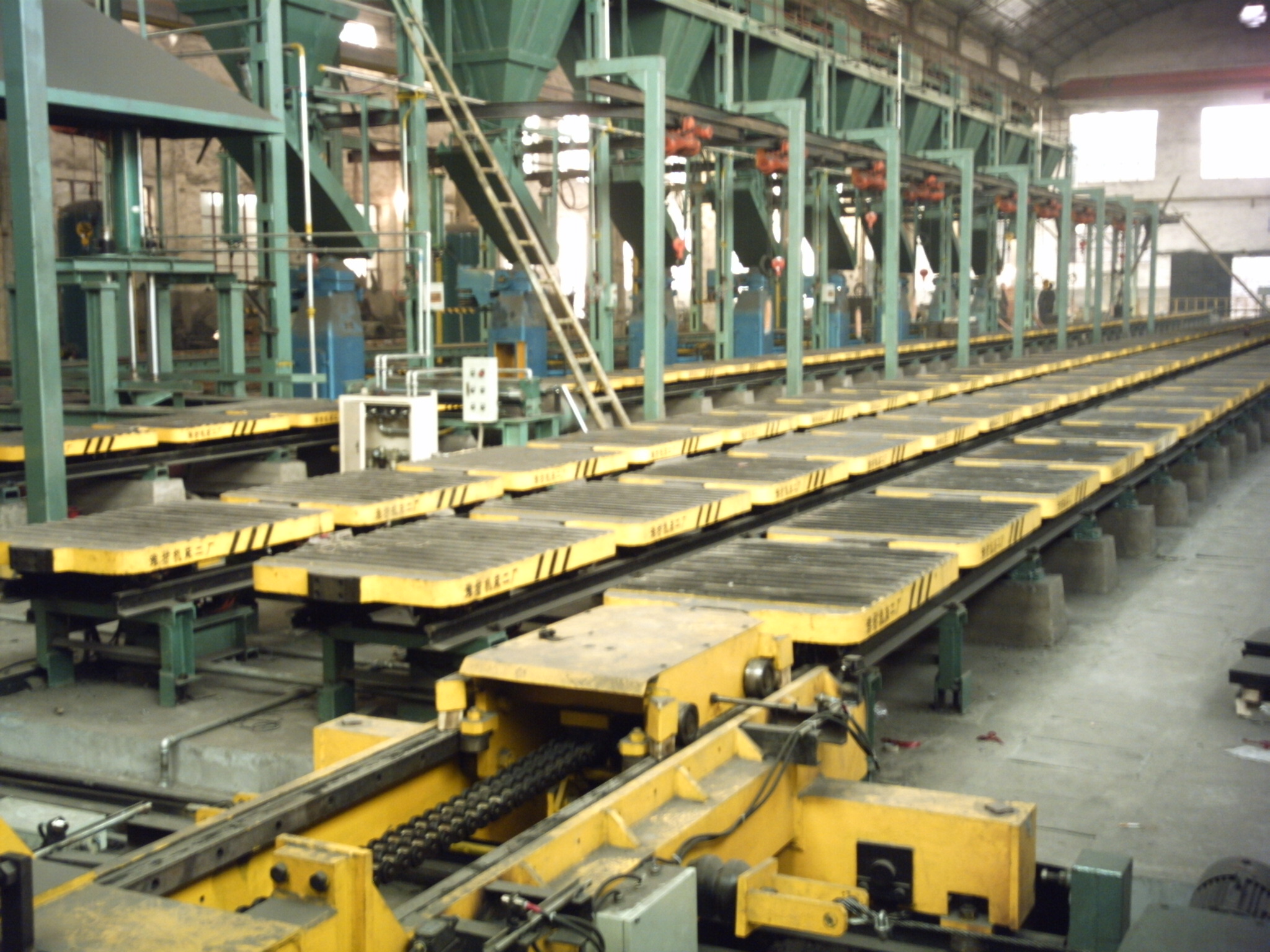

Mechanized Molding LineMechanized Molding Line

Model
Mould Box Size
Size of Pallet Car
Pitch of Pallet Car
Number of Flasks for Every Pallet Car
Remarks

KXZ80
800×630×300/300
1000×750
1070
1

KXZ90
900×700×300/300
1220×820
1200
1
KXZ100
1000×800×350/350
1220×920
1300
1
KXZ120
1200×900×400/400
1420×10201
1500
1
KDX3
500×420×150/150

1800
3
It is suitable for walking mold conveyer,a smallmoulding box model and designed by meeting the needs of larger production.
KDZ2
720×450×200/200

1500
2
